Tenical Parameters
| Description | Parameters |
| Item / Model | RNCF H7088 |
| Running life | 5 millions |
| Drive voltage | DC24V 20W |
| Pass Speed | 25-30 persons(Normal close),35-40persons(Normal open) |
| Open direction | Unidirectional and bi-directional (optional) |
| Opening time | 0.6S (adjustable) |
| Color | Silver |
| Thickness of Housing | 2.0mm |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Product Description

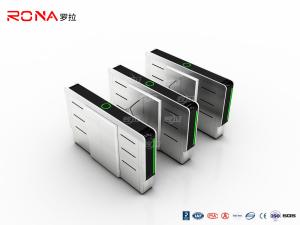

Intelligence flap barrier (block gate) is product with intelligent management of high-tech mainly for staff access. Flap barrier is upgrade of intelligent tripod turnstiles and swing gates.The product with precision processed, complete function and high quality, mainly used in high-end residential, intelligent buildings, hotels, subway, pier, clubs and other places. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control.
Standard Functions & Features of Servo Flap Turnstiles Gate
| 1) When out of power, the turnstile open automatically without storage battery. |
| 2) DC Brushless Motor, Maintenance Free. |
| 3) With direction indication, guiding passenger to entry and exit. |
| 4) Self automatic locking to prevent forcedly passing without the card |
| 5) Light and sound alarm indication function, preventing illegal entry or irregular passing |
| 6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card. |
| 7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000 |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |

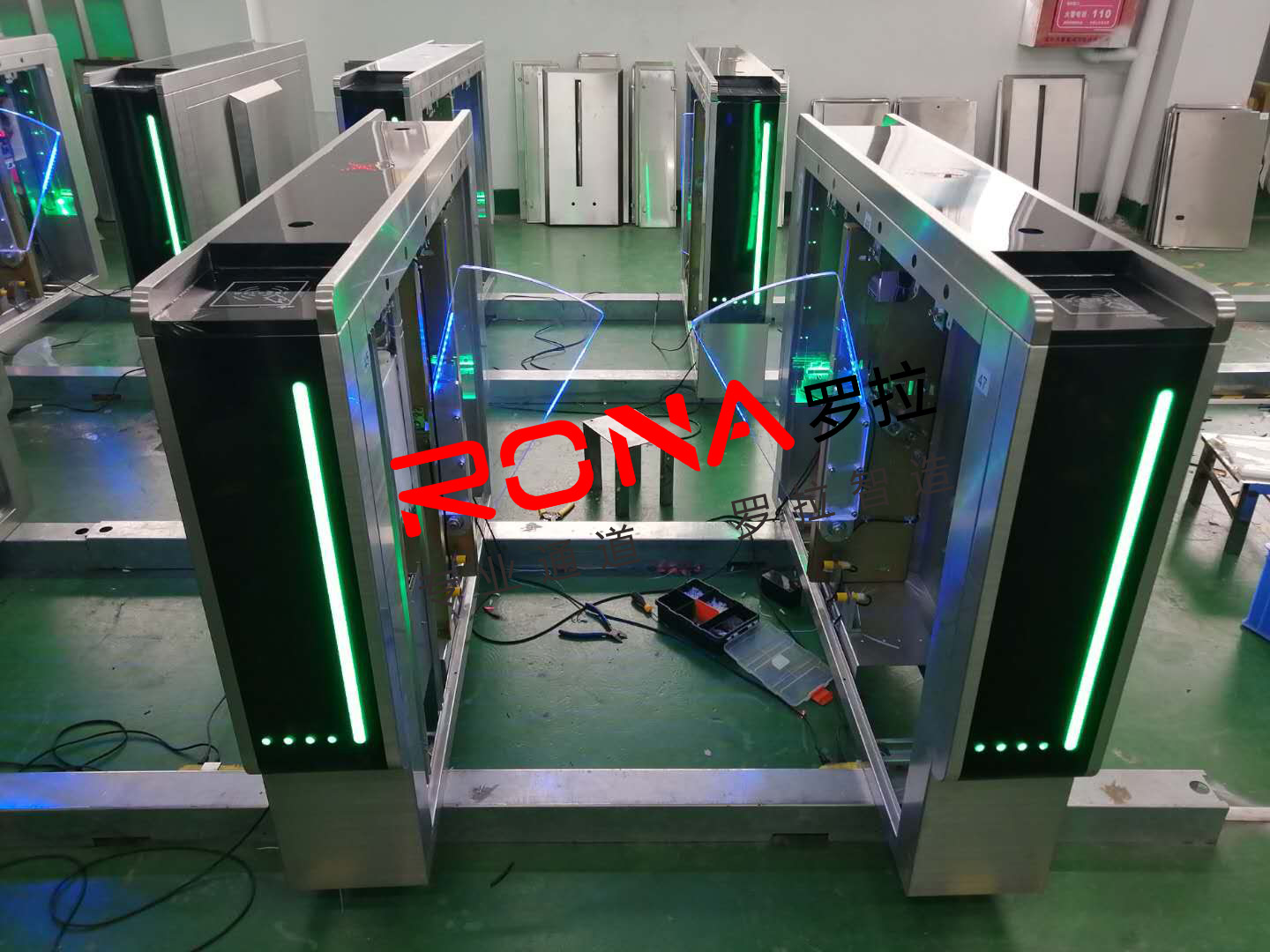

Production line for flap barrier gate
New Project Case for university
Export wooden box for package
